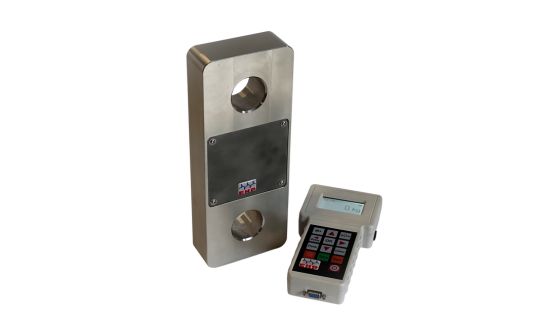

Load Link ZL-V2

The lightweight ZL-V2 is made of a high-strength, anodized aluminium alloy and is the ideal measuring device for determining tensile forces, rope loads, elongation tests and for simple weighing tasks on crane hooks and much more.

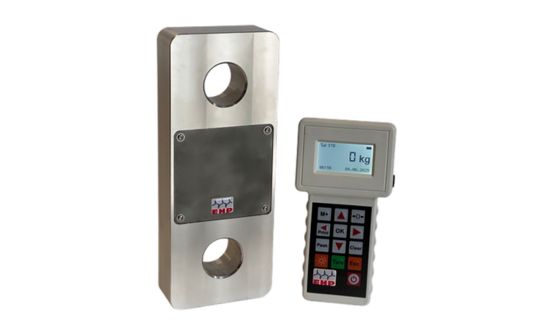

The associated RM-ZL-V2 radio remote control is equipped with a large, illuminated display. All important functions of the pull tab can be controlled with one hand – taring, maximum value, totalizing and much more.

In addition, up to 16 ZL-V2s can be controlled simultaneously to form totals (compound scale).

DYNAMOMETER CS  <-> SERVICE

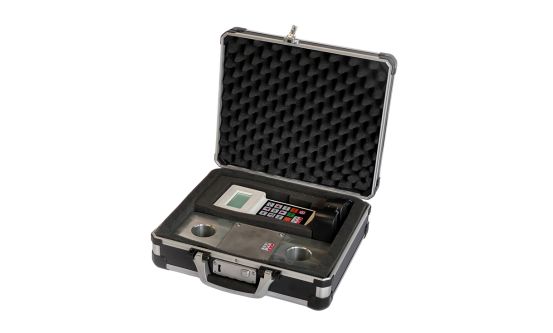

The handy transport case protects the ZL-V2 tension measuring lug and its remote control from impact damage and facilitates mobile use.

As an option, we offer matching shackles, eyelets and hooks – we will be happy to advise you personally on the right choice!

Areas of application: Mechanical engineering, mining, transportation, logistics, shipyards, construction, ports, forestry and much more.

Contact

Features

  • Measuring accuracy of 0.1% of the final value

  • Lightweight anodized aluminium housing

  • Includes radio remote control with large, illuminated display
  • High functionality: taring, maximum value, totalizing and compound scale
  • Customer-specific unit selection (kg,t,lb,to,kN)

  • LORA radio interface up to 100m in clear view

  • RS 232 interface for printer or PC applications

  •  Transport case included

  •  Protection class (EN 60529) IP65

  •  Individually customizable with shackles, eyelets and hooks – we would be happy to advise you personally!

Product-areas

  • Measurement of rope tension
  • Determination of rope loads
  • Tensile force measurement on machines
  • Overload test on cranes and hoists
  • Temperature range -20 to + 70 ° C

Product-weighing:

Model ZL Measuring range Scale weight Readability d
Scale 3t ZL-V2 3 0 – 3.000 kg 1,5 kg 0,5 kg
Scale 5t ZL-V2 5 0 – 5.000 kg 2 kg 1 kg
Scale 12.5t ZL-V2 12.5 0 – 12.500 kg 3,5 kg 2kg
Scale 25t ZL-V2 25 0 – 25.000 kg 8.5 kg 5 kg
Scale 35t ZL-V2 35 0 – 35.000 kg 11 kg 10 kg
Scale 50t ZL-V2 50 0 – 50.000 kg 19 kg 10 kg
Scale 75t ZL-V2 75 0 – 75.000 kg 32 kg 20 kg
Scale 120t ZL-V2 120 0 – 120.000 kg 52 kg 50 kg



Product-weighing:

Model: Scale 3t ZL-V2 3 Measuring range: 0 – 3.000 kg Scale weight: 1.5 kg Readability d: 0,05 kg
Model: Scale 5t ZL-V2 5 Measuring range: 0 – 5.000 kg

Scale weight: 5 kg

 Readability d: 1 kg
Model: Scale 12,5 ZL-V2 12.5 Measuring range: 0 – 12.500 kg Scale weight: 3.5 kg Readability d: 2 kg
Model: Scale 25t ZL-V2 25 Measuring range: 0 – 25.000 kg Scale weight: 8.5 kg

Readability d: 5 kg
Model: Scale 35t ZL-V2 35 Measuring range: 0 – 35.000 kg Scale weight: 11.5 kg Readability d: 10 kg
Model: Scale 50t ZL-V2 50 Measuring range: 0 – 50.000 kg Scale weight: 19 kg Readability d: 10 kg
Model: Scale 75t ZL-V2 75 Measuring range: 0 – 75.000 kg Scale weight: 32 kg Readability d: 20 kg
Model: Scale 120t ZL-V2 120 Measuring range: 0 – 120.000 kg Scale weight: 52 kg Readability d: 50 kg

Downloads

➦ Product information load link ZL-V2
➦ Technical manual load link ZL-V2
